ATCC Controllers' Read Binder...

NOTAMS, FAQs and other info for users of ATCC

November, 1997

#1: Voice Upgrade

The voice upgrade (V1.1) is undergoing final testing, and pending approval by the testers will ship in early December. The CD's will be sent free to all registered users, worldwide. Shipments are by bulk 3rd class mail within the U.S. (2-3 weeks), and outside the U.S. by surface mail (boat), which usually takes around 3 months. If you are eager for the upgrade and would like your package sent by 1st class mail within the U.S. (3-5 days), you can get priority handling/shipping for $3.00, or you may have it sent by international air mail (5-10 days) for US$6.00. These priority orders will be sent first, and the rest bulk-sorted and processed afterwards. Email us prior to December 1 (support@xavius.com), or telephone or fax (both 805-723-7600) with your credit card info and serial number from the back of the disk, if you would like priority shipping. If you purchased the program from our Austrialian distributor PCaviator(www.pcaviator.com.au), however, you will receive the upgrade directly from them around mid-December.

This is an awesome upgrade, and creates an ATC simulation environment that completely blows away the FAA's own $2 million DYSIM units...

#2: Official New Features to Version 1.1

1. Pilots now speak, though you can turn off the sound and still have text.

2. A new "VSCS" (Voice Switching and Control System) screen replaces the receiver window, simulating the new VSCS radio and interphone control panels recently installed in U.S. Centers.

3. Vector lengths are now selectable in miles OR minutes. In the OPTIONS screen you can choose to display "minutes," so clicking up the VECT control will extend the line by how far the aircraft will travel in that many minutes. This is how most Centers display their vector lines, though some (like ZLA) still have it in miles. You can select whichever you prefer.

4. The computer supervisor has undergone sensitivity training, and is now a little "kinder and gentler," though still unforgiving if you have a deal. "Abandoning the sector" (a.k.a. computer crashes) are dealt with on a case-by-case basis, instead of by immediate dismissal.

5. General Aviation aircraft (like N456SD) refer to themselves as "November six sierra delta" instead of the full callsign, which is how they often abbreviate it in real life. You can also shorten their callsign the same way (N6SD), or as before use just the last few characters (6SD).

6. Boeing 777's appear more frequently (mach .83), and some of the new business jets (like the C750, mach .96) also show up occasionally.

7. Various bugs in some commands (report passing, intercepting radials) have been fixed, and any memory problems (program lockups) should no longer be an issue.

8. Upgradable... more voices, more sectors, speech recognition, all compatible with this new version.

#3: More on the "Voice"

The pilots speak using the Voice, one main human Voice that was digitized and is reassembled to speak the different phrases, altitudes, headings and everything else. It seems to be more cheerful in the morning, but mostly it sounds strictly no-nonsense professional. Occasionally it sounds like a real person, but it is just a computer, after all, so there are the occasional mis-placed pauses. Once you get used to the Voice, though, the whole sim can become a little too real. Probably the most stressful part of real-life controlling is not being able to communicate properly, either because the pilots aren't listening when you need them to DESCEND NOW!!!, or everybody keeps stepping on everybody else ("BLOCKED!"), or somebody takes their time with a readback when you have 20 things you need to do immediately... all of that especially becomes a factor with the Voice, as the process of getting your command issued, understood and properly read back can be more significant (and more stressful) than just deciding what to issue.

#4: The new VSCS console

The radio system in U.S. Centers until recently used vacuum tubes, big relays and giant toggle switches from the 1950's. The interphone system was a row of pushbuttons, with a pulse (rotary) dialer from the 1960's. The new system is called VSCS, and digitizes all radio and interphone communications. Everything is now displayed on a little monitor next to the radar, with a touch-sensitive screen. Little squares represent the transmitter, receiver, and interphone buttons. To call another sector, for example, you simply touch the appropriate square.

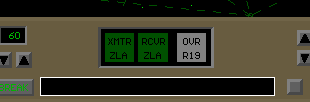

In ATCC, the old radio receiver window is replaced by a VSCS mini-console:

The two green squares represent your transmitter and receiver. When there is silence, they are green. When you transmit, the XMTR square turns light brown. As pilots transmit, the RCVR square turns light brown.

The "OVR" button ("Override") replaces the old green-light interphone system, and adjacent controllers now answer with the word "override" instead of "green light." Touch this square to connect instantly to another sector. The real VSCS console has several rows of these white squares, each representing a different sector. In ATCC, though, there is just the one square, and the sector you are calling is automatically selected for you. When you touch the square, it turns green, meaning you are now connected to the next sector. After the other controller says "override," key your microphone as usual (the window turns green as in the previous version), then after you finish, the other controller will give his initials. Press the OVR square again to hang up, and the square will turn back to white.

It's a little confusing, because with the transmitter and receiver, light brown means "on" and green means "off," but with the interphone, green means "on" and white means "off." Furthermore, if you accidently touch the transmitter or receiver squares, your radios turn black and shut off completely--no transmitting or receiving. Touch them again to re-enable them.

FAQ: Why make it confusing? And why would you want to turn off your radios in ATCC?

A: You wouldn't. But that's how they operate in the real VSCS system, so that's how they operate in ATCC. You do get used to it...just don't mess with the transmitter/receiver controls, and everything should work fine.

#5: The Radar Controller Test

Mostly controllers learn "on the job," by watching others, training under the eye of an instructor, and gaining personal experience. There is an official class, though, that new controllers take prior to beginning training on the radar positions. Linked below is an actual test from the class, a sort of "final exam." There are 12 questions, each with a radar "screen" (8K GIF picture) and a multiple-choice question. The radar screen graphics are directly scanned from the actual test, with the questions re-typed underneath.

Use the scroll bar in your browser to see the whole "radar," then keep moving down to find the question. Scroll down further to see the answer, which is in red. Click "next" for the next question, and "Exit" to return to the top of this page.

If a screen graphic pauses too often, or stops loading, try pressing Reload.

Click here for the Radar Class test

#6: Note to U.S. TV Viewers

Look for the NBC TV movie "Blackout," now scheduled to air sometime in November. Surely inspired by our ATCC sim, it is about a controller who has a mid-air collision in sector 82. The radar displays are a special "Hollywood" version of ATCC, with puffy datablocks and little blue triangles instead of green backslashes, but efforts were made to try to keep the ATC end of things realistic, at least. Try to spot the back of this author's head in its stunning TV debut, standing aimlessly (and very briefly) in the middle of the control room.

#6: You Have Been Briefed

Official rules/procedures state:

• You may not take a handoff with the <F1> key unless you can see the actual radar target (i.e. the backslash). Sometimes the aircraft itself is off your screen, but the datablock is on your screen and flashing at you. Don't take it--wait until you can see the whole backslash.

• You may not remove an aircraft's datablock from your scope (<F1> key) until the aircraft has left your sector. Even if the aircraft has no more traffic, and you've switched him to the next frequency, you are required to have its datablock displayed while still within your sector. Remember, though, that the aircraft can leave your sector vertically, so once it's above or below the altitudes of your sector, you can (and should) remove it. But not before then.

#7: Featured Sector of the Month: ZNY 66

These are all good tips, if you haven't already discovered them yourself:

• Get the aircraft from the northeast DOWN, and the JFK departures UP! As soon as you get one of the JFK departures stuck under somebody crawling along V139, he'll probably be stuck there for awhile, and you'll have to skip him over and under everything else on the airway. Do everything you can to keep those JFK departures climbing, and either descend the ACY/PHL arrivals as soon as you get them, and/or turn them south to about a 180 or 190 heading to get away from the departures. Your workload increases tremendously when you have to thread your JFK's through the slow traffic floating up and down V139.


• As soon as a JFK arrival from the south checks on, descend him to 11,000. Forget about crossing CAMRN at 11,000, which the pilots are expecting... that is too much to issue and hear in the readback. Just DM110. The aircraft will get down in time because they're close to the airport, so they'll probably cross CAMRN at 11,000 anyway. Then with the oceanic arrivals, descend them to 12,000 as soon as you get them. They'll be separated from the JFK stream from the south (who should be at 11,000 at the converging point), so you won't have to worry about separation as much. Once they're in place and sequenced in the stream, descend them the rest of the way to 11,000.

• JFK departures begin flashing at you almost as soon as they leave the runway. There's no reason to take them right away (and you probably can't see their radar target yet anyway), so move their datablocks to the '8' (north) position. This will put them off your scope, so you don't have to look at them until they're closer to your boundary.

• Usually Center controllers try not to issue speed restrictions unless necessary, and try to let the aircraft resume their normal speed as soon as they can. With the JFK arrivals, though, everybody has to slow to 250 knots when they descend below 10,000 anyway, so don't waste time trying to find everybody's current speed and trying to match the different speeds. The aircraft are in your sector only for a few minutes, so small differences in speeds (one at 320, the other at 310) shouldn't cause problems.

• Use vectors to achieve sequencing between the south JFK arrivals and the oceanic arrivals, not speeds. The oceanic arrivals are almost always heavy and fast (320 or 330 knots), but have a headwind, while the south arrivals are a little slower but have a tailwind, which makes guessing proper speeds too complicated.

• If you get a high-flying prop (FL190, for example) going northeast along V139, you will eventually have trouble with the JFK departures, even if you don't have any at the moment. As a preemptive measure, turn them 20 right to get out of the departure "corridor," or if they're at FL230 turn them to the left. Once they're clear of the JFK jets give them direct SARDI or HTO.

#8: More General Tips

• Datablock positions should be part of your regular scan. After you've refreshed your memory regarding the aircraft and its altitudes, check that the datablock position won't overlap with another datablock later on. Move the datablock to the position that will minimize future overlapping. Don't, however, put the datablock directly in front of the target (blocking possible traffic), or directly behind (blocking the histories).

• A quicker way to determine spacing between two aircraft from a common reference point (like DBQ in sector 75), without having to measure with <F4><fix name><mouse click> is just to use <F4><aircraft1 mouse click><mouse click over reference point>, then <ENTER>, memorize the mileage, and without moving the mouse press <F4><mouse click><aircraft2 mouse click> for the second mileage. So you're getting the aircraft1-to-VOR, then VOR-to-aircraft2 distances, which are the same and easier to type than aircraft1-to-VORname, aircraft2-to-VORname.

• When you first sit down at a session, find out the ride information from different aircraft at different altitudes and locations in your sector. If anything is worse than occasional light chop, make it standard to issue RI (ride information) when somebody checks on, rather than just "roger." If an aircraft reports moderate chop, don't even bother giving RI to subsequent aircraft at the same altitude...just descend or climb them to what you know is smoother air, to keep your radio from being tied up with ride complaints when you are busy.

• If you start to lose control of your radios, where suddenly everybody starts to transmit their check-on, or requests for higher, ignore them all. Do your scan, issuing commands one at a time, making handoffs where they need to be made, and moving datablocks where they need to be moved. Once everything you need to do is completed, then go back and "roger" the check-ons, or just wait for them to check on again. You are the only one with anything important to say. Everything you need to do takes priority over anything they want from you. You run the show!!

#9: Frustrated? Session no fun? Headaches?

This is why: too much traffic! If you try to work too much traffic, even with good, constant scanning techniques, you may not get the overall "flick" and will jump from crisis to crisis, instead of keeping things routine and smooth. The traffic level should allow you to comfortably concentrate on typing a long command, or give you enough time to locate the aircraft that keeps asking for lower, without worrying that you're missing something else. Of course, there are times when traffic surges and you have to struggle to keep up, but if you find you are always struggling, click the traffic level down, or click the master level (in OPTIONS) down maybe 10 points.

If you ever find yourself pounding your fist into the keyboard (real controller keyboards were wisely designed out of metal), or shouting at the pilots to "PLEASE PAY ATTENTION, EVERYBODY!!!!!", you're not alone. But at that point, it's time for a break!

END
